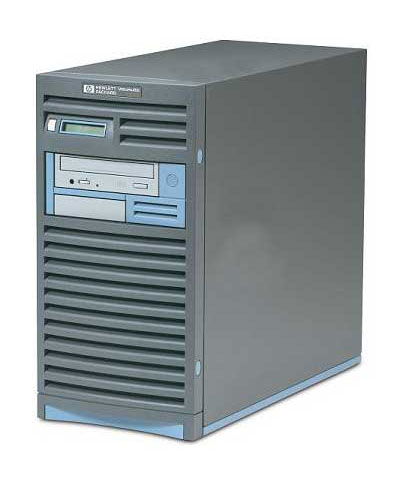

HP C3600 Workstation - A5992A, 3BSEC36001R1

Price - Lowest pricing for guaranteed genuine OEM products.

Warranty - all products carry a one year warranty from On Queue Computer and are guaranteed eligible for manufacture contracts and third party maintenance contracts.

Quality - all products are guaranteed genuine from the manufacture, extensively tested, and individually packaged for extra protection during shipping. World-class industry ESD standards protect and insure a long life for all of your hardware equipment.

Technical Support - our technical support team is here to help you install or configure any products you purchase through On Queue Computer. Call us at (978) 499-0049.

Customer Service - On Queue Computer wants to earn your repeat business by providing you with superior customer service. Talk to a customer service representative directly at (877) 667 8383.

Delivery - most products ship the same day and are carefully handled and packaged to guarantee a safe delivery to your door. We use Federal Express to deliver our equipment because of their outstanding on-time delivery and extremely low damage rates, however, we can use any currier to suit your business needs.

Experience - with over 25 years in the industry, we will provide you with the highest level of support and customer service unparalleled in the industry.

Inventory - On Queue Computer stocks a large inventory of servers, workstations, disk drives, processors, I/O, mass storage, and other peripherals benefiting you with quicker delivery and lower pricing.

Rental/Leasing - we offer flex rental to short term lease adjustments to allow for Flexible situational and financial solutions. A portion of your term payments will go towards the purchase of your technology solution should you need to purchase it.

HP C3600 QuickSpecs

Processor

552 MHz PA-8600 processor with 1.5 MB cache

Memory

8 GB Meximum Memory
8 Memory Slots
Dimm Capacities: 256 Mb, 512 MB, 1 GB SDRAM

Internal Drives

Ultra 2 SCSI LVD (80 pin SCA Connector)
2 Drives Maximum
9 Gb, 18 Gb, and 36 Gb
32X CD-ROM
Optional Floppy Disk Drive

Supported Operating Systems

HP-UX 10.2 ACE 9912
HP-UX 11.0 ACE 9911

External I/O Ports

RJ45 10/100 BaseTx Ethernet
NSE SCSI 50-pin in high-density external port
Ultra2 SCSI LVD 68-pin in high-density external port
Two Serial (RS-232) ports
Two USB (Universal Serial Bus) ports (keyboard and Mouse only)
One Parallel (IEEE 1284) port
Four Audio ports (Line In, Line Out, Microphone In, and Headphones Out)

I/O Slots (6 Total)

Two PCI 1X (half card) slots
Three PCI 2X (full size) slots
One PCI 4X (full size) slots

Graphics

HP Visualize Fxe Graphics Card
HP Visualize Fx5 Pro Graphics Card
HP Visualize Fx10 Pro Graphics Card

Dimensions (w x d x h)

9" x 25.8" x 17.5"
Deskmount Chassis Type
Weight: 46 lbs Minimum; 56 lbs Fully Loaded

Warranty

One year for end users

HP C3600 Workstation Bill of Materials

Cables (13 items)

Drives (18 items)

Fans (2 items)

Graphics (7 items)

Keyboards (13 items)

Memory (12 items)

Mice and Trackballs (4 items)

Monitors (1 item)

Other (1 item)

PC Boards and Backplanes (2 items)

Parts (11 items)

Power Supplies (5 items)

Rack Mount Kits and Accessories (1 item)

Terminator (2 items)

Part	Description
5182-1857	Audio cable assembly - For CD-ROM, CD-RW, or DVD-ROM - 4-pin (F) connector to 4-pin (F) connector - 47.8cm (18.8in) long - From CD-ROM drive to system processor board
A4986-63005	Drive power cable - Two 4-pin (F) connectors with four wires and a 4-pin (F) connector with two wires - 85cm (33.5in) long - From CD-ROM and floppy drives to system processor board
A4986-63004	Floppy drive ribbon cable with ferrite - 34-pin (F) connector marked 'to PCA' to 34-pin (F) connector marked 'to floppy' - 43.2cm (17in) long
A4986-63002	IDE CD-ROM drive ribbon cable with ferrite - 40-pin (F) connector marked 'to PCA' to a 40-pin (F) connector marked 'to CD-ROM' - 34cm (13.4in) long - From CD-ROM drive to system processor board
8120-8376	Power cord (Flint Gray) - 17 AWG, 2.2m (7.3ft) long - Has straight (F) receptacle (for 220V in China)
8120-6980	Power cord (Flint Gray) - 18 AWG, 4.5m (14.8ft) long - Has straight (F) receptacle (for 220V in South America)
8120-8706	Power cord (Flint Gray) - 2.3m (7.5ft) long - Has EPSR symbol molded into the plug and straight (F) receptacle (for 220V in Hong Kong)
8120-6869	Power cord (Flint Gray) - 3-wire, 2.3m (7.5ft) long - Has straight (F) receptacle (for 220V in Argentina)
8120-1689	Power cord (Mint Gray) - 17 AWG, 2.0m (6.6ft) long - Has straight (F) receptacle (for 220V in Europe, Bangladesh, Indonesia, Pakistan, Burma, Sri Lanka, and Vietnam)
8120-1369	Power cord (Mint Gray) - 17 AWG, 2.0m (6.6ft) long - Has straight (F) receptacle (for 240V in Australia, New Zealand, and China)
8120-1351	Power cord (Mint Gray) - 17 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (for 240V in the UK, Hong Kong, Singapore, Malaysia, and Brunei)
A4986-63006	Ribbon cable - DB-25 (M) connector to 20-pin (F) connector - 46cm (18in) long - From LCD display to system processor board
A4986-63003	Ultra SCSI/Low Voltage Differential (LVD) SCSI cable - Has one 68-pin (M) connector on each end - 0.6m (2ft) long - From SCA hard drive backplane board to system processor board

Part	Description
A5009A	1.44MB floppy drive - 3.5-inch form factor with IDE PC/AT interface
A1658-69031	18GB Ultra2 Wide SCSI LVD hard drive - 10,000 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector (Seagate Cheetah, model ST318203LC)
A4998A	18GB Ultra2 Wide SCSI LVD hard drive - 10000 RPM, 3.5in form factor, 1.0in high, 80-pin SCA connector
A5001A	32x-max CD-ROM drive - Half-height CD-ROM drive with ATAPI IDE connector
A1658-69032	36.4GB Ultra2 Wide SCSI LVD hard drive - 10,000 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector (Seagate Cheetah, model ST336704LC)
A6031A	36GB Ultra2 Wide LVD SCSI hard drive - 10000 RPM, 3.5in form factor, 1.0in high, 80-pin SCA connector
A1658-69027	9.1GB Ultra2 Wide SCSI LVD hard drive - 10,000 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector (Seagate Cheetah, model ST39102LC)
A1658-69028	9.1GB Ultra2 Wide SCSI LVD hard drive - 7,200 RPM, 3.5-inch form factor, 1.0-inch high, and 80-pin SCA connector (Quantum Atlas V, 3.5 series)
A4997A	9.1GB Ultra2 wide SCSI LVD hard drive - 10,000 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector
A4996A	9.1GB Ultra2 wide SCSI LVD hard drive - 7,200 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector
A4978-62006	CD-ROM drive mounting bracket
A4986-62006	Floppy disk drive mounting bracket - Mounts below the CD-ROM drive
A1658-60027	New part for A1658-69027
A1658-60028	New part for A1658-69028
0950-3336E0	New part for A1658-69031
0950-3694	New part for A1658-69032
A4986-86003	SCA (Single connector attach) hard disk backplane PCA - Has one female 68-PIN connector, and two 80-PIN SCA hard drive connectors - Mounts to the rear of the hard drive bay
A4978-62005	Single Connector Attach (SCA) hard disk drive mounting bracket - Allows mounting of removable hard drives in the drive bay

Part	Description
A4978-62012	Tubeaxial fan (Panaflo model FBA09A12H) 92mm x 92mm x 25mm thick fan with 22cm long three wire cable - 12VDC nominal operating voltage - Mounts to the I/O card cage bracket
A4978-86014	Tubeaxial fan kit (Panaflo model FBA12G12H) - 120mm x 120mm x 37mm thick fan with 30cm long 3-wire cable - 12VDC nominal operating voltage - Includes ESD wrist strap and instructions - Mounts on the rear of the chassis assembly (Two used)

Part	Description
A1262A	HP VISUALIZE-FX5 Pro PCI graphics card - 64MB SDRAM memory
A1299B	HP VISUALIZE-fx10 Pro (Revision B) PCI graphics card with 128MB DDR SDRAM memory
A4982-69001	HP VISUALIZE-fxe PCI graphics board - 3.5MB of texture memory (18MB SDRAM total memory), 32-bit, 66MHz - (Part of A4982A)
A4982A	HP VISUALIZE-fxe PCI graphics card - 3.5MB of texture memory (18MB SDRAM total memory), 32-bit, 66MHz
A1262-66501	New part for A1262-69001
A4982-66501	New part for A4982-69001
A1262-69001	VISUALIZE-FX5 Pro PCI graphics card - 64MB SDRAM memory

Part	Description
A4983-60406	USB keyboard with JIS-109 layout - Has 2.9m (10ft) cable with type (A) USB connector (Option AR0 - Japan, Kanji)
A4983-60423	USB keyboard with PC-104 layout - Has 2.9m (10ft) cable with type (A) USB connector (Option AB0 - Taiwan, Traditional Chinese)
A4983-60416	USB keyboard with PC-104 layout - Has 2.9m (10ft) cable with type (A) USB connector (Option ABY - Danish)
A4983-60401	USB keyboard with PC-104 layout - Has 2.9m (10ft) cable with type (A) USB connector (Options ABA, ABC, ABH, ABJ, ABM, ABZ and AB2 - English)
A4983-60403	USB keyboard with PC-105 layout - Has 2.9m (10ft) cable with type (A) USB connector (Option ABD - German)
A4983-60404	USB keyboard with PC-105 layout - Has 2.9m (10ft) cable with type (A) USB connector (Option ABE - European Spanish)
A4983-60405	USB keyboard with PC-105 layout - Has 2.9m (10ft) cable with type (A) USB connector (Option ABF - European French)
A4983-60409	USB keyboard with PC-105 layout - Has 2.9m (10ft) cable with type (A) USB connector (Option ABN - Norwegian)
A4983-60411	USB keyboard with PC-105 layout - Has 2.9m (10ft) cable with type (A) USB connector (Option ABP and ABQ - Switzerland, German/French)
A4983-60412	USB keyboard with PC-105 layout - Has 2.9m (10ft) cable with type (A) USB connector (Option ABS and ABX - Swedish/Finnish)
A4983-60413	USB keyboard with PC-105 layout - Has 2.9m (10ft) cable with type (A) USB connector (Option ABU - U.K., English)
A4983-60414	USB keyboard with PC-105 layout - Has 2.9m (10ft) cable with type (A) USB connector (Option AKX - Belgian Flemish)
A4983-60421	USB keyboard with PC-106 layout - Has 2.9m (10ft) cable with type (A) USB connector (Option AB1 - Korean)

Part	Description
A6016A	1024MB, 120MHz SDRAM DIMM memory module
A3864-69001	1024MB, 120MHz SDRAM DIMM memory module - (Part of A6016A)
A4993A	128MB, 120MHz SDRAM DIMM memory module
A3860-69001	128MB, 120MHz SDRAM DIMM memory module - (Part of A4993A)
A4994A	256MB, 120MHz SDRAM DIMM memory module
A3862-69001	256MB, 120MHz SDRAM DIMM memory module - (Part of A4994A)
A4995A	512MB, 120MHz SDRAM DIMM memory module
A3863-69001	512MB, 120MHz SDRAM DIMM memory module - (Part of A4995A)
A3860-66501	New part for A3860-69001
A3862-66501	New part for A3862-69001
A3863-66501	New part for A3863-69001
A3864-66501	New part for A3864-69001

Part	Description
A4361C	HP Spaceball 3003 FLX 6-axis, 2-button serial input device
A4992A	HP Spaceball 4000 FLX 6-axis, 12-button serial input device
A4992B	RS232-C Spaceball 4000 3D Motion Controller (Light Gray with Black ball and palm insert) - Includes twelve user buttons (nine on the finger side and three on the thumb side) and a controller ball - Has 3.0m (10ft) cable with 9-pin 'D' connector
A4983-60101	USB 3-button scrolling mouse (Quartz Gray) - Has 2.9m (10ft) cable with type (A) USB connector

Part	Description
A4978-62025	LCD display with power switch mounted in a plastic bracket - Has attached 1-inch ribbon cable with male DB-25 connector - Mounts to the front of the chassis assembly

Part	Description
9300-1408	Disposable ESD ground wrist strap

Part	Description
A5992-69010	Motherboard - Includes 550MHz PA-8600 RISC processor module with attached heatsink and replacement instructions
A5992-60010	New part for A5992-69010

Part	Description
A4986-86006	Chassis assembly - Includes: 2 rear fans, hard drive/memory fan, I/O card fan, I/O card guide with speaker, I/O card bracket, air divider, IDE, FDD, and SCSI LVD power and data cables, status panel with cable, drive trays, and the front bezel assembly
A4978-00039	Cover thumbscrew - 6-32 thread - Holds the top cover on the chassis (two used)
A4986-00039	Fan mounting bracket for 80mm hard disk / memory cooling fan
A4986-40005	Fan/speaker bracket assembly - Has PC board guides on rear for the I/O boards
A4986-62003	Front bezel assembly - Includes front bezel with molded in display bezel and power button, blank CD-ROM and floppy filler panels, and security lock
A4986-00026	I/O card air divider (baffle) - Mounts in the upper rear of the chassis assembly (above the two rear panel fans)
A4986-40007	PCI board retainer clip - Keeps the PCI boards secure in the system board connector slots
0624-0727	Pan head Taptite thread-cutting screw - 6-32 thread, 0.437-inch long, Torx T15 recess with slot, conical washer - Carbon steel, zinc-yellow chromate conversion
8120-8871	Power cord (Black) - 17 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (for 220V in Thailand, Cambodia, Vietnam, and the Philippines)
8120-1378	Power cord (Jade Gray) - 18 AWG, 2.3m (7.5ft) long - Has straight (F) C13 receptacle (for 120V in USA, Canada, Latin America, Korea, Taiwan, Thailand, Spain, Brazil, and Vietnam)
5063-4513	Speaker - 7.62cm (3.0in) diameter, 8-ohm impedance, 1.5-watt - Has attached 45.7cm (18in) long cable with 2-pin connector - Mounts in the I/O fan and speaker bracket assembly

Part	Description
A4986-60001	New part for A4986-69001
0950-2877	Power supply assembly (500 watts) - Includes power supply, safety interlock switch, and AC power connector - Mounts in the lower left of the chassis assembly
700444-001	Power supply assembly (500 watts) - Includes power supply, safety interlock switch, and AC power connector - Mounts in the lower left of the chassis assembly
A4986-69001	Power supply assembly (500 watts) - Includes power supply, safety interlock switch, and AC power connector - Mounts in the lower left of the chassis assembly
NFS500-9632E	Power supply assembly (500 watts) - Includes power supply, safety interlock switch, and AC power connector - Mounts in the lower left of the chassis assembly

Part	Description
J1457A	Rack mount kit - Includes the rack mount base, left and right rack ear panels, heavy duty slide rails, various screws, nuts, spacers, and an installation guide

Part	Description
A4986-63008	LVD (Low voltage differential)/single-ended SCSI terminator - Has integral status LED which displays single-ended or low voltage differential mode - 68 pin (M) with thumbscrews
A1658-63012	NSE (Narrow single-ended) external passive SCSI terminator module - 50 pin (M) with latch/spring clips
