Dell Precision T3600 Workstation - ABB 800xA DCS Certified

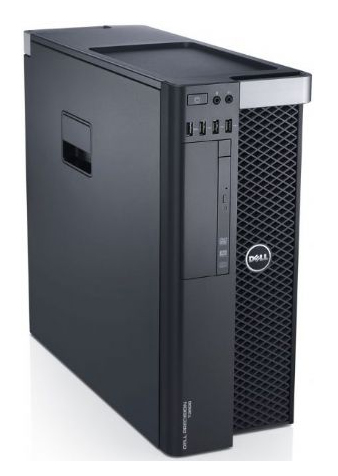

Dell Precision T3600 Workstation

The Dell Precision T3600 offers powerful performance for exacting workstation workloads such as mainstream 3D, advanced engineering, digital content creation, CAD/CAM, and design environments. Dell workstations are tailored to your needs and are available in a wide range of configurations that are ISV certified for a broad range of professional applications, so you can rest easy knowing your professional-grade system can handle your specific workload. The Dell Precision T3600 features a totally redesigned chassis, enabling you to perform service and modifications with greater ease than ever before.

On Queue Computer has been an industry leader in the legacy Dell market for over 26 years. If you need a new system, parts, or support you can be sure that On Queue Computer has the experience to help you.

For high quality Dell Precision T3600 Workstations with a one year warranty please Request a Quote or contact us directly at (978) 499 0049. We supply all components and parts including system boards, power supplies, fans, disk drives, memory, cd/dvd roms, and I/O boards.

Request a Quote

Dell Precision T3600

Processor
  • Intel Xeon processor E5-1600 or E5-2600 family with up to eight-cores and Intel Advanced Vector Extensions, Intel Trusted Execution Technology, Intel AES New instructions, Optimized Intel Turbo Boost and optional Intel vPro technology
  • Intel C600 series chipset
Memory
  • Quad channel
  • Up to 64GB 1600MHz or 1333MHz ECC and non-ECC DDR3 memory
  • 4 DIMM slots
Storage
  • Standard: Dell PERC H310 PCIe host-based RAID card with four 6Gb/s ports supporting SATA/SAS/SSD drives and RAID 0, 1, 5, 10 configurations
  • Optional: Dell PERC H710P PCIe hardware RAID card with four 6Gb/s ports supporting SATA/SAS/SSD drives and RAID 0,1, 5, 10 configurations
  • Bays: Two internal 3.5" hard drive bays; one external 5.25" bay; one external slimline optical bay
  • Up to two 3.5" or four 2.5" internal SATA, SAS or SSD drives
  • SATA 7200RPM: Up to 3.0TB
  • SAS 10K RPM: Up to 900GB
  • SAS 15K RPM: 146GB
  • SSD: 256GB
Supported Operating Systems
  • Genuine Windows 7 Ultimate 32-Bit; Genuine Windows 7 Ultimate 64-Bit
  • Genuine Windows 7 Professional 32-Bit; Genuine Windows 7 Professional 64-Bit
  • Red Hat Enterprise Linux WS v.6.1 EM64T (Also certified to run Red Hat Enterprise Linux Version 5.7 64-Bit)
Networking
  • Integrated Intel 82579 Gigabit Ethernet controller with Remote Wake UP, PXE and Jumbo frames support
  • Optional Intel Ethernet Server Adapter X520-T2 10GbE PCIe controller card (Windows 7 drivers only at launch)
Standard I/O Ports
  • Front: 3 USB 2.0, 1 USB 3.0, Microphone, Headphone
  • Internal: 3 USB 2.0, 2 SATA 6.0Gb/s
  • Rear: 5 USB 2.0, 1 USB 3.0, 2 PS2, 1 Serial, 1 RJ45, 1 1394a (optional with card), 1 Parallel (optional with card)
I/O Slots
  • (all full length): Two PCIe x16 Gen 3; one PCIe x16 Gen 3 wired x4; one PCIe x4 Gen 2; one PCIe x1 Gen 2; One PCI 32bit/33MHz
Graphics
  • Support for two PCI Express x16 Gen 2 or Gen 3 graphics cards up to 300W (total for graphics)
  • High End 3D: NVIDIA Quadro 6000, NVIDIA Quadro 5000
  • Mid-range 3D: AMD FirePro V7900, AMD FirePro V5900, NVIDIA Quadro 4000, NVIDIA Quadro 2000
  • Entry 3D: AMD FirePro V4900, NVIDIA Quadro 600
  • Professional 2D: AMD FirePro 2270, NVIDIA Quadro NVS 300
  • GPU: NVIDIA Tesla C2075 GPGPU - Supports Nvidia Maximus technology
Power Supply
  • (externally accessible, toolless, 80 Plus Gold Certified, 90% efficient): 635W or 425W
Dimensions (HxWxD)
  • 16.30" x 6.79" x 18.54"; 414mm x 172.6mm x 471mm
Warranty
One year for end users
