Dell OptiPlex XE Workstation - ABB 800xA DCS Certified

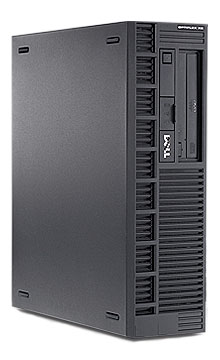

Dell OptiPlex XE Workstation

Purpose-Built Design - Engineered to thrive under demanding day-to-day use, the OptiPlex XE features a purpose-built design that solves the unique challenges of hot, dusty, small and enclosed spaces.

Design that fits right in - Under the counter, on the desktop or inside an enclosure -no matter what setup the job requires, the OptiPlex XE offers two form-factor options with the ability to mount in virtually any orientation required. An optional external power button provides easy access for kiosks and other enclosed-space uses.

Ready to take the heat - Designed to run 24/7 in enclosed spaces, the OptiPlex XE is specified to operate at ambient temperatures of up to 45°C (113°F). An optional ducting kit can boost heat tolerance up to 55°C (131°F).

Peripheral perfect - With native support for PS/2, Serial (RS-232), VGA and up to 10 USB connections, including powered, the OptiPlex XE can support a wide variety of new and legacy peripherals.

Stability You Can Count On - The OptiPlex XE offers long-term system stability, customizable integrated solutions, and a low total cost of ownership for OEMs and retail/point-of-sale (POS) customers.

On Queue Computer has been an industry leader in the legacy Dell market for over 26 years. If you need a new system, parts, or support you can be sure that On Queue Computer has the experience to help you.

For high quality Dell OptiPlex XE Workstations with a one year warranty please Request a Quote or contact us directly at (978) 499 0049. We supply all components and parts including system boards, power supplies, fans, disk drives, memory, cd/dvd roms, and I/O boards.

Request a Quote

Dell Optiplex XE

Processor
  • Intel Core 2 Duo E7400
  • Intel Pentium Dual Core E5300
  • Intel Celeron 440
  • Intel Q45 Express Chipset w/ICH10DO
Memory
  • Four DIMM slots
  • Non-ECC dual-channel 1066MHz DDR3 SDRAM
  • up to 8GB
Internal Drives
  • Bays in Desktop Chassis: 2 internal 3.5", 1 external 5.25"
  • Bays in Small Form Factor Shassis: 1 internal 3.5", 1 external 5.25" (slimline)
  • 3.5" Hard Drives: up to 500GB 7200 RPM SATA 3.0GB/s
  • 2.5" Hard Drives: up to 250GB 7200 RPM SATA 3.0GB/s
  • 160GB SATA Full Disk Encryption
  • up to 128GB SATA Solid State Drive
  • RAID 0 & 1 support
Supported Operating Systems
  • Microsoft Windows 7 Home Basic (32-bit); Microsoft Windows 7 Home Premium (32-bit); Microsoft Windows 7 Professional (32/64-bit)
  • Microsoft Windows Vista Home Basic (32-bit); Microsoft Windows Vista Business (32/64-bit)
  • Microsoft Windows XP Professional (32-bit) via Windows Vista Business, or Windows 7 Professional, Downgrade Rights
  • Microsoft Windows Embedded POSReady
  • Ubuntu Linux
  • FreeDOS for N-series
Networking
  • Dual Integrated Broadcom BCM5761 NetXtreme and Broadcom BCM57780 NetLink 10/100/1000
  • optional Dell Wireless 1520 WLAN card (802.11n)
Standard I/O Ports
  • 6 External USB 2.0 ports
  • 1 External 24V Powered USB port
  • 2 Serial
  • 2 RJ-45
  • 2 PS/2
  • 1 VGA; 1 Display Port
  • 1 Line-in/Microphone; 1 Line-out
I/O Slots
  • 1 low-profile PCIe x16 (*Desktop and Small Form Factor Chassis)
  • 1 low-profile PCIe x 1 (*Desktop and Small Form Factor Chassis)
  • (Optional combo risers convert the PCIe x16 and PCI into full height slots or PCIe x16 and PCIe X1 into full height slots) (*Desktop Version Only)
  • 2 low-profile PCI (*Desktop Version Only)
  • (Optional riser converts the 2 PCI into full height slots) (*Desktop Version Only)
Graphics
  • Integrated Intel Graphics Media Accelerator 4500
  • DVI Adapter card
  • 512MB ATI Performance Graphics
Power Supply
  • Desktop Chassis - 300W 88% Efficient PSU; Energy Star 5.0 compliant, Active PFC
  • Small Form Factor Chassis - 280W 88% Efficient PSU; Energy Star 5.0 compliant, Active PFC
Dimensions (h x w x d)
  • Desktop Chassis - 4.30" x 15.61" x 13.75" / (10.93cm x 39.65cm x 34.91cm) - Weight: 20.60lbs/9.38kg
  • Small Factor Chassis - 3.35" x 11.40" x 12.74" / (8.52cm x 28.96cm x 32.36cm) - Weight: 14.3lbs/6.48kg
Warranty
One year for end users
